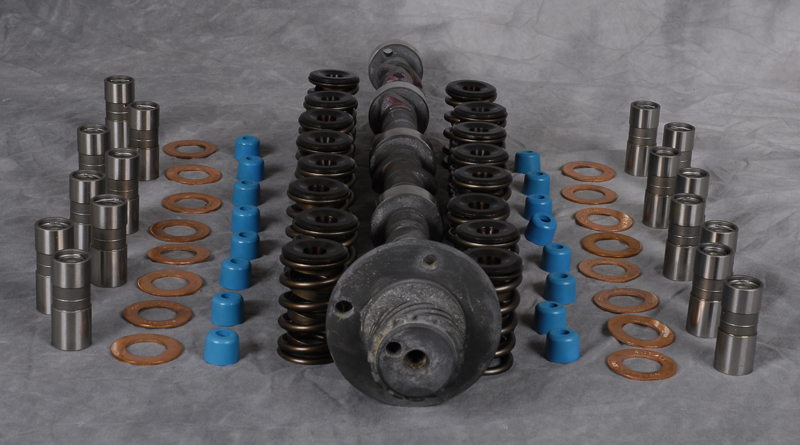

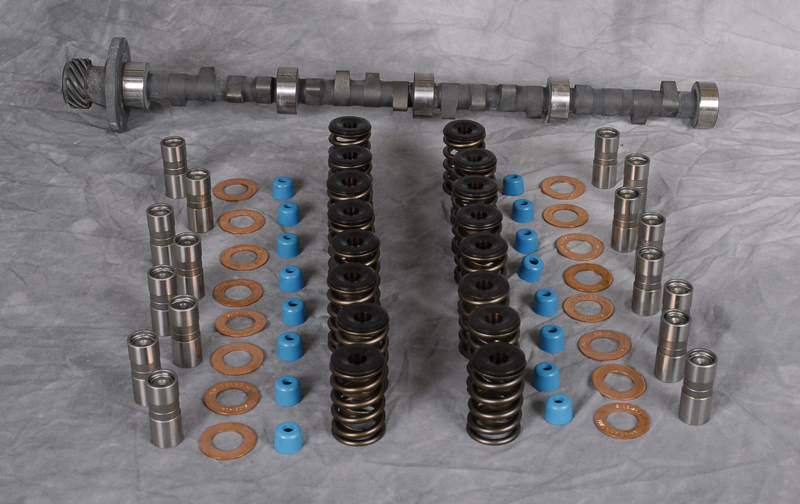

The Flash says: “All of our cam kits come with performance valve springs, lifters, Chromoly retainers, shims, locks, & seals . . . Gotta know that it’ll all work together, know what I mean?”
You are viewing an old version of the catalog.
To order online, please visit the new Online Catalog.
Note: Pricing and product descriptions on this page are not updated consistantly.
Our camshafts are ground to our proprietary specifications by reliable, long-time manufacturers. All grinds are geared toward maximizing performance, both for horsepower and torque, and all are ground on new cam blanks, unless otherwise specified, and are Made in the USA.
The grinds recommended for street applications do not generally require longer pushrods, like regrinds and some brands' "new'" camshafts do (though we do stock over-length pushrods for those who already have one of those). Note that these grinds are not static - the part numbers stay consistent for idle quality and approximate size, but we are constantly updating our cam profiles due to continued testing on our in house dyno, and the frequent introduction of new lobe profiles, technologies, etc.
As you see, we have listed our most popular profiles, but with hundreds of grinds in our database, we are not limited to what you see. Due to the obvious, we do not
disclose proprietary specifications. You will be provided a Camshaft Data Sheet with the purchase of a cam kit from us giving you all the spec’s needed to install and degree
your camshaft properly, as well as instructions for installation. We will be glad to help you with cam and kit selection when you are ready to purchase. This way, we can
assure you of spending your money in the right place, in the first place.
That’s what separates engine builders from phone salesmen.
If you are looking for a specific set of specs, we’d be happy to grind you a custom stick, and recommend the appropriate spring and lifter package.
Note: ‘CTA’ cams are optimized for 8.5:1 engines, while the ‘SS’ series cams are optimized for higher compression ratios such as 10:1.
All cad company camshafts are only available ground on new billets, unless otherwise specified.
We offer springs from $85 / set and lifters from $65 / set.
We also offer blower and turbo versions of most cams - call for applications and pricing.
Kit Pricing is for the Camshaft, as well as appropriate lifters, springs, retainers, locks, and valve stem seals. Cams generally come with a complimentary
single-serving-size cam lube as available.
The spring kits included in our cam kits do not generally require machining the heads to install. We strongly recommend
purchasing the kit (when available) versus the cam only.
| OE / Mild Street / Towing / Low RPM Marine Cams | ||||||
|---|---|---|---|---|---|---|
| Recommended rockers: Stage 1 (VT71110) or better. | ||||||
| Cam Grind | Description | RPM | Cam Only Price | Cam Only PN |
Cam Kit Price | Cam Kit PN |
| OE Spec | Standard Replacement Camshaft | 1600-3600 | $230 | VT20101 | N/A | N/A |
| CTA 120 H | Low compression (9.2:1 or less) RV cam.
Restoration, Towing, Direct Drive Airboat. Near stock idle quality, Best all around choice for low RPM applications. Note: This cam is designed to idle well as low as 450 RPM, for those that need that feature. |
1800-4200 | $275 | VT21120 | $390 | VT21121 |
| SS 120 H | High compression (10:1 or more) RV cam.
Restoration, Towing, Direct Drive Airboat. Near stock idle quality, Best all around choice for low RPM applications. Note: This cam is designed to idle well as low as 450 RPM, for those that need that feature. | 1800-4200 | $275 | VT22120 | $390 | VT22121 |
| PC 120 H | High compression (10:1 or more) RV cam.
Restoration, Towing, Direct Drive Airboat. Near stock idle quality, Best all around choice for low RPM applications. This cam is ideal for making the absolute maximum torque you can get at 3000 RPM. Note: the very-low-RPM idle is a bit ragged, and this cam cannot be counted on to idle down under 500 RPM consistantly, for those that need that feature. |
1800-4200 | $295 | VT23120 | $410 | VT23121 |
| CTA 205 H | Low compression (9.2:1 or less) RV cam.
Restoration, Towing, Mild Hot Rods, Cruisers. Good Idle. |
2000-4800 | $275 | VT21205 | $390 | VT21206 |
| SS 205 H | High compression (10:1 or more) RV cam.
Restoration, Towing, Mild Hot Rods, Cruisers. Good Idle. |
2000-4800 | $275 | VT22205 | $390 | VT22206 |
| PC 205 H | Cruiser / budget hot rod cam
Mild Hot Rods, Cruisers. Mild cam with hot rod idle. More power than the SS205H, in the same RPM range, and safe with Stage 1 rockers. This cam is ideal for making absolute maximum torque you can get at 3000 RPM. |
2000-4800 | $295 | VT23205 | $410 | VT23206 |
| Hot Street / High RPM Marine Cams | ||||||
| Recommended rockers: Stage 3 (VT71310) or better. | ||||||
| CTA 250 H | Low compression (9.2:1 or less) mild street performance cam.
Hot rods, gear box airboats, etc. Fair Idle, Good choice for truly streetable performance. |
2200-5000 | $295 | VT21250 | $450 | VT21251 |
| SS 250 H | High compression (10:1 or more) mild street performance cam.
Hot rods, gear box airboats, etc. Fair Idle, Good choice for truly streetable performance. |
2200-5000 | $295 | VT22250 | $450 | VT22251 |
| CTA 275 H | Low compression (9.2:1 or less) mild street performance cam.
Hot rods, gear box airboats, etc. Fair Idle, Good choice for truly streetable performance. |
2200-5200 | $295 | VT21275 | $450 | VT21276 |
| SS 275 H | High compression (10:1 or more) mild street performance cam.
Hot rods, gear box airboats, etc. Fair Idle, Good choice for truly streetable performance. |
2200-5200 | $295 | VT22275 | $450 | VT22276 |

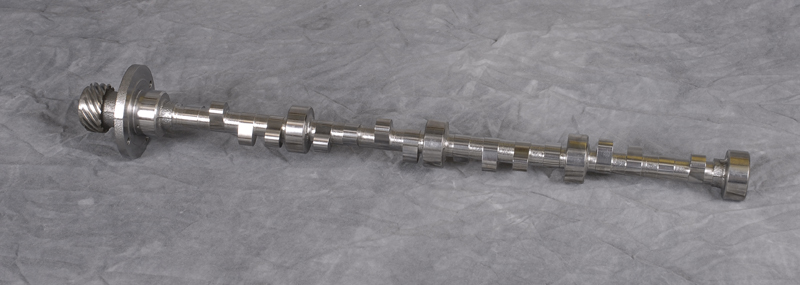

| R 275 H | Mild street performance hydraulic roller cam.
Hot rods, gear box airboats, etc. Fair Idle, Good choice for truly streetable performance. Cad Company hydraulic roller cams eliminate wear issues and are worth ~20-30 HP over the flat tappet version, with similar idle quality and RPM range. |
2200-5200 | $895 | VT26275 | $1495 | VT26276 |
| CTA 300 H | Low compression (9.2:1 or less) hot-rod street performance cam.
Hot rods, gear box airboats, etc. Good ignition and exhaust recommended. OK Idle, Good choice for truly streetable performance. |
2400-5500 | $295 | VT21300 | $450 | VT21301 |
| SS 300 H | High compression (10:1 or more) hot-rod street performance cam.
Hot rods, gear box airboats, etc. Good ignition and exhaust recommended. OK Idle, Good choice for truly streetable performance. |
2400-5500 | $295 | VT22300 | $450 | VT22301 |
| SS 350 H | High compression (10:1 or more) hot-rod street performance cam.
Hot rods, gear box airboats, etc. Good ignition and exhaust recommended. OK Idle, Good choice for truly streetable performance. |
2600-5800 | $295 | VT22350 | $475 | VT22351 |
| R 350 H | High compression (10:1 or more) hot-rod street performance hydraulic roller cam.
Hot rods, gear box airboats, etc. Good ignition and exhaust recommended. OK Idle, Good choice for truly streetable performance. Cad Company hydraulic roller cams eliminate wear issues and are worth ~20-30 HP over the flat tappet version, with similar idle quality and RPM range. |
2600-5800 | $495 | VT26350 | $1495 | VT26351 |
| Pro/Cad 540 H | Budget Bracket Racing, Street Stompers; Oval Track @ 11:1 (Stock, Modified, IMCA) | 2800-6000 | $315 | VT23540 | $490 | VT23541 |
| R 540 H | Budget Bracket Racing, Street Stompers; Oval Track @ 11:1 (Stock, Modified, IMCA) | 2800-6000 | $495 | VT26540 | $1495 | VT26541 |
| Pro Street and Hydraulic Race Cams | ||||||
| Recommended Rockers: Stage 4 (VT71420), Stage 4 Stainless (VT71440), or Stage 6 (VT71620).
Stage 3 (VT71310) will still do the job, but cost you power. |
||||||
| Pro/Cad 600 H | Very strong hydraulic: PRO/Street; Bracket Racing; Asphalt Oval Track | 3000-6500 | $315 | VT23600 | $530 | VT23601 |
| Pro/Cad 625 H | Very strong hydraulic: PRO/Street Strokers; Bracket Racing; Tractor Pulls | 3200-6800 | $340 | VT23625 | $550 | VT23626 |
| Pro/Cad 640 H | Very strong hydraulic: PRO/Street Strokers; Bracket Racing; Tractor Pulls | 3200-6800 | $340 | VT234640 | $550 | VT23641 |
| Big Bad Cams - These are the hottest cams available off-the-shelf. | ||||||
| Recommended Rockers: Stage 4 (VT71420), Stage 4 Stainless (VT71440), or Stage 6 (VT71620). | ||||||
| Pro/Cad 650 H | Radical Hydraulic: The baddest flat tappet hydraulic you can get. | 3500-6500 | $340 | VT23650 | $550 | VT23651 |
| R 650 H | Radical Hydraulic Roller: Roller version of the PC650H | 3500-7000 | $595 | VT26650 | $1595 | VT26651 |
| Pro/Cad 650 S | Our most popular flat tappet solid race cam. For iron head non-roller combos, this cam is king of the hill. | 3000-6500 | $415 | VT25650 | $595 | VT25651 |
| Solid Cams | Custom Solid Kits from $595. | Per App | $call | |||
| Roller Cams | Custom Hydraulic Roller Kits from $1695. Custom Solid Roller Kits from $2195. | Per App | $call | |||
|
We recommend Cad Company Stage III Shaft rockers for the larger hydraulic street cam applications, Stage IV for the really big hydraulic cams or any flat tappet solid cam, and Stage IV or Stage V for roller cams. |
|
||||
